1 or 2 Injector per cylinder.

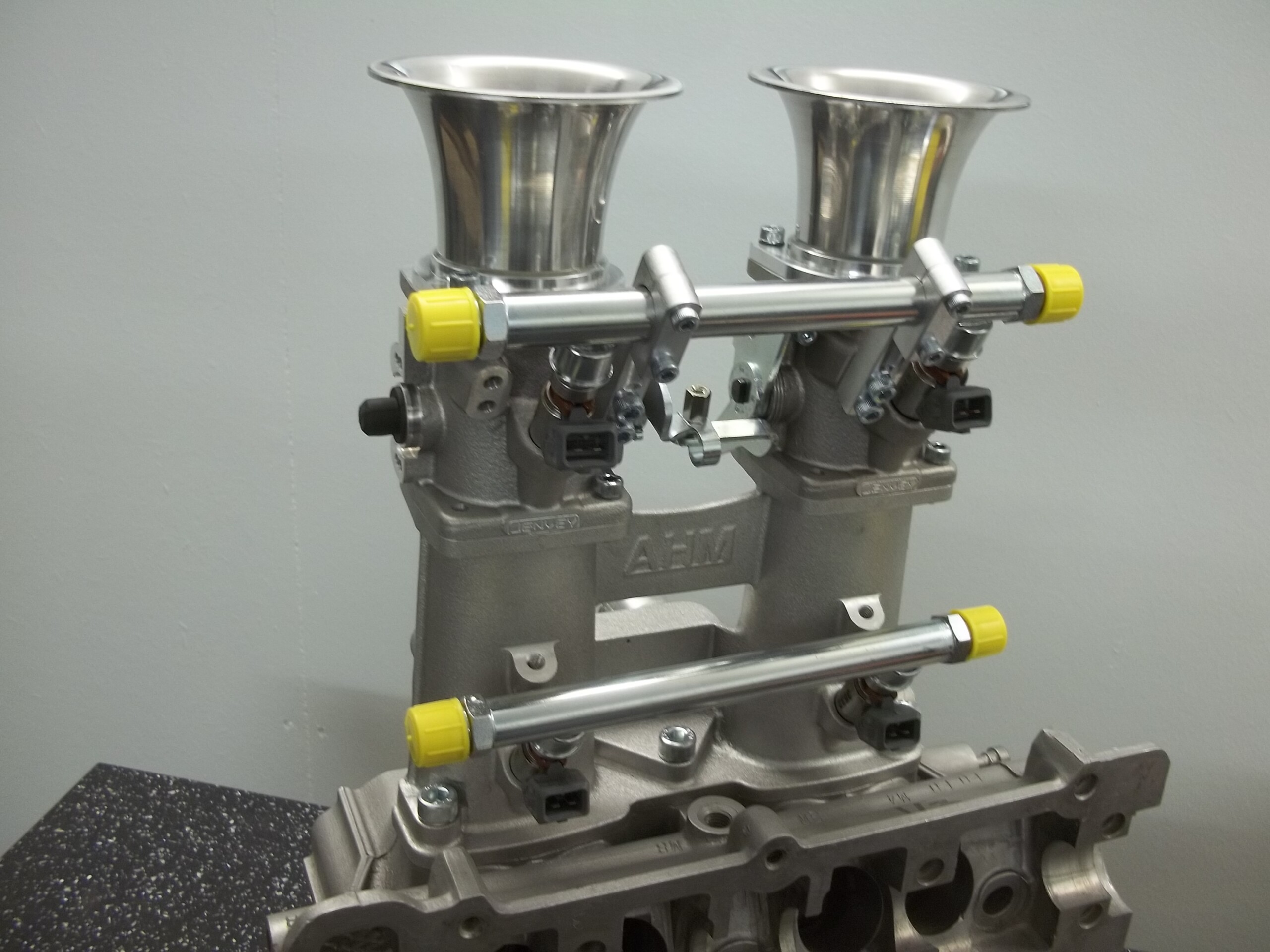

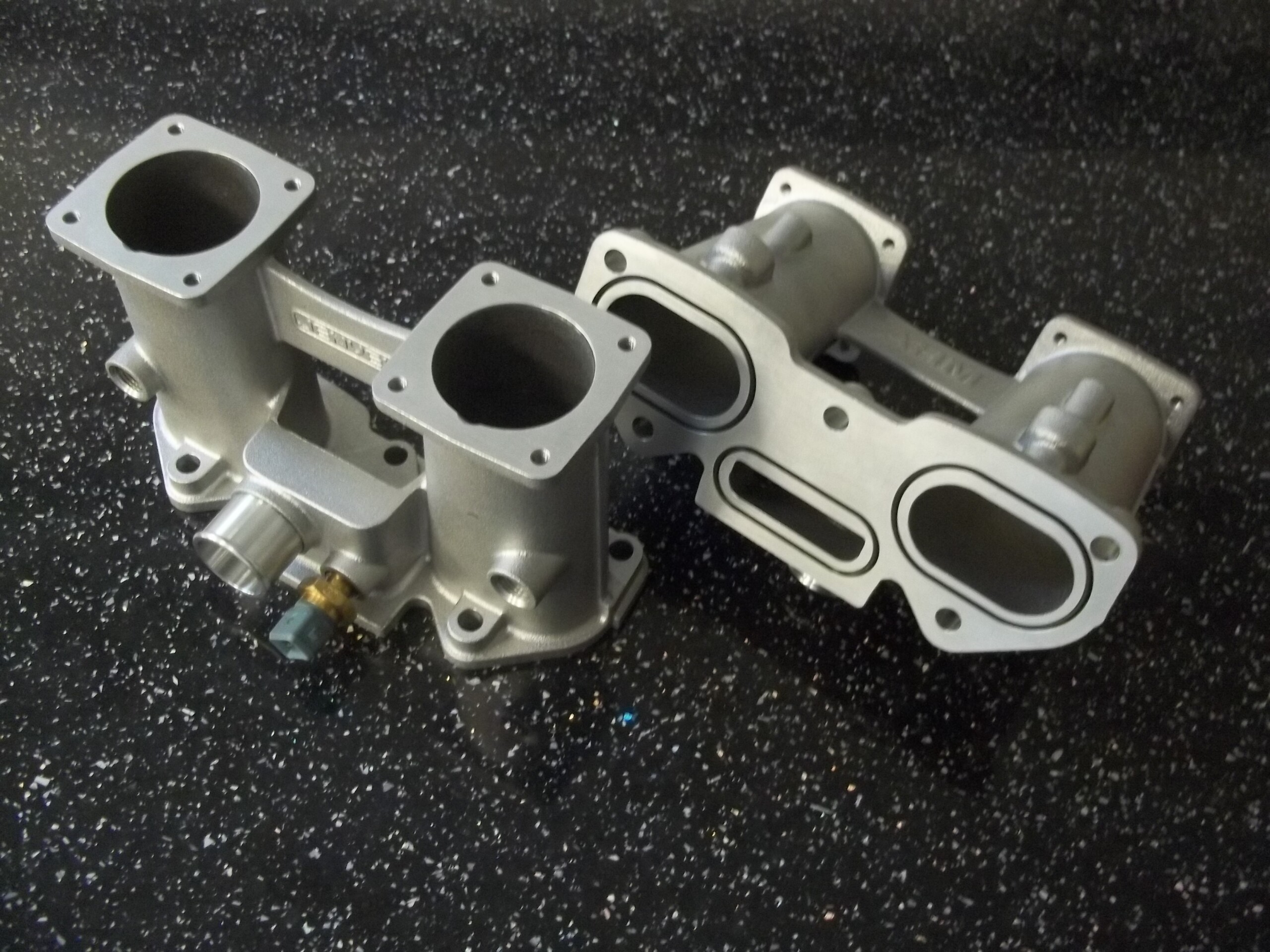

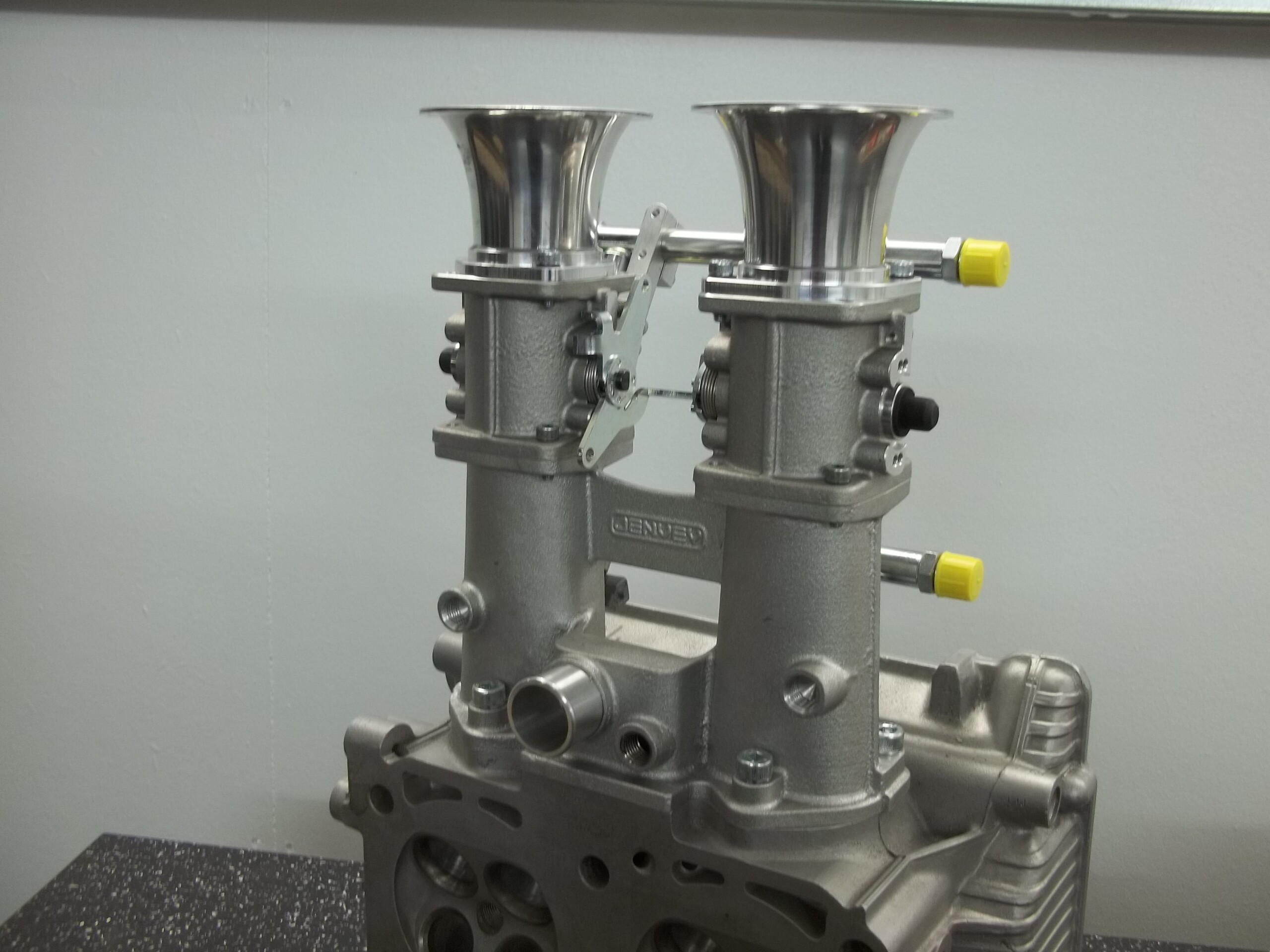

AHM ALFA Sud, 33 16v inlet manifolds & throttle bodies
£1,249.00 excl. VAT

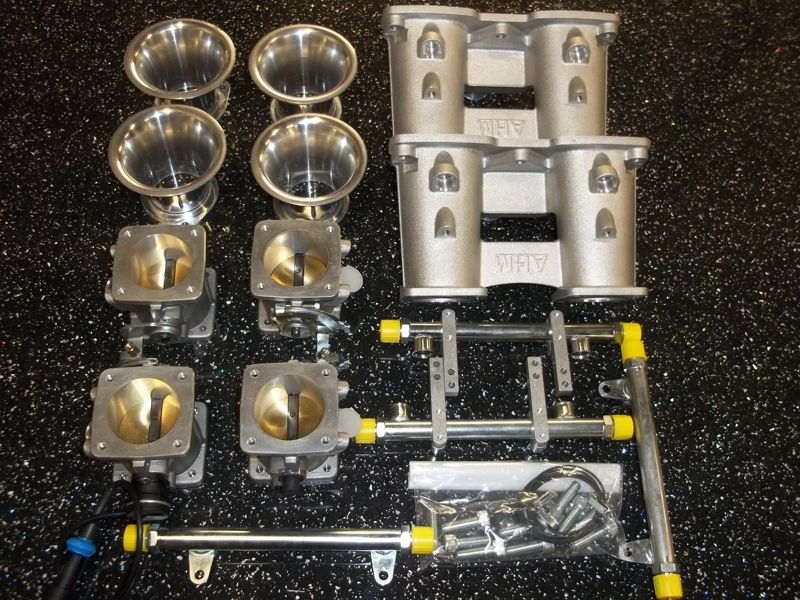

We have designed these for use with 1 or 2 injectors per cylinder, high and low if required. The lower injector bosses have been moved to the center of the port. The lower injector bosses have been machined with just the last part not braking through into the port, so they can just be drilled for the final part.Or we can do this for you. Fittings for a std water temp sensor are included. Ports are larger then std, and smaller then full race so they can be ported to suit. We can supply these with injectors if required please call or email for details. Kit includes 45×45 air horns, fuel rails and mountings, manifolds and 45 mm throttle bodies.
Please add £100 if you require 2 injectors per cylinder set up.
